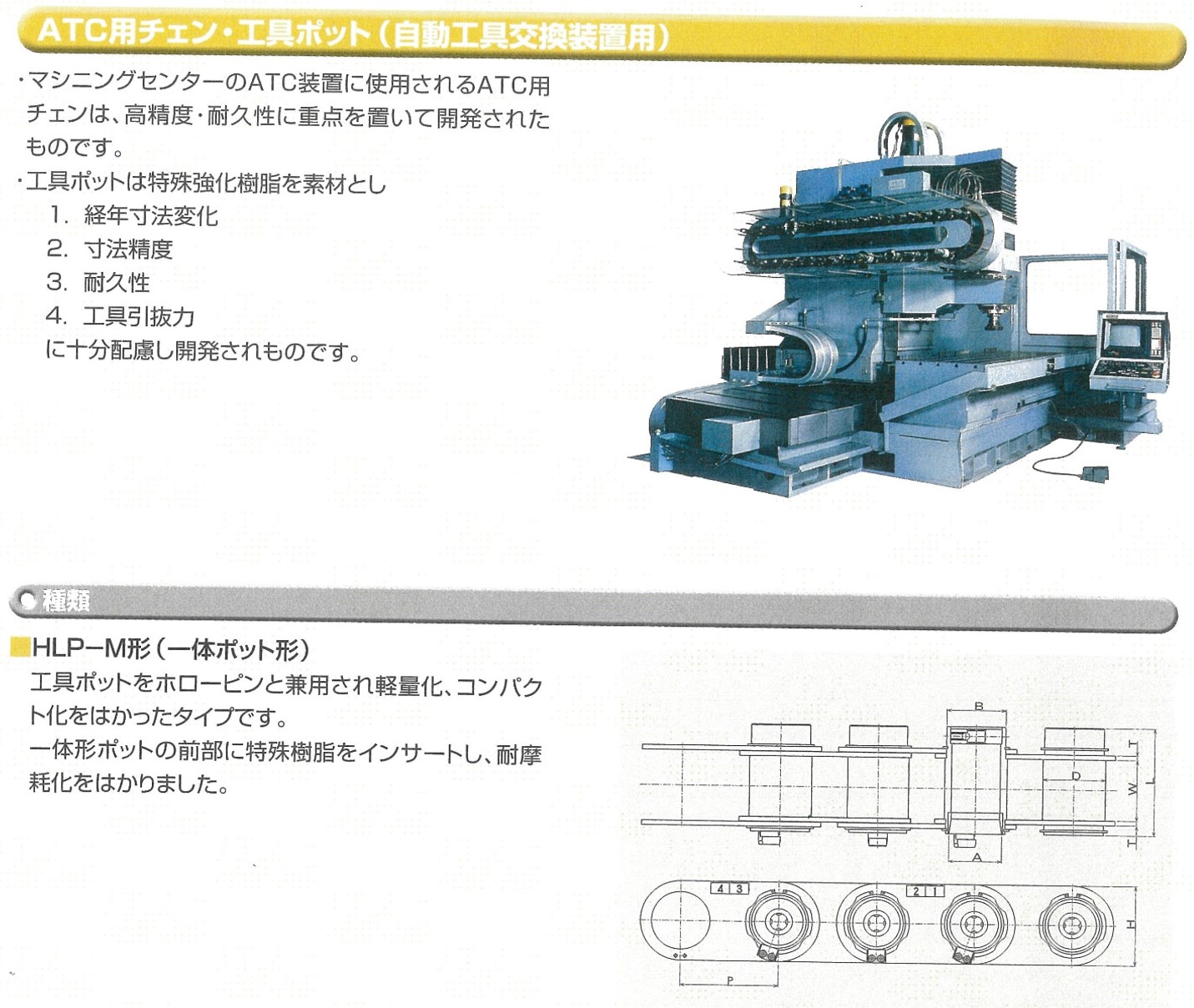

| チエン番号 | ピッチ Ｐ (mm) |
寸法(mm) | ||||||
| Ａ | Ｂ | Ｄ | Ｈ | Ｌ | Ｔ | Ｗ | ||
| HLP90-40M | 90 | 44.45 | 55 | 60 | 82 | 89 | 4.0 | 60 |
| HLP100-40M | 100 | |||||||
| HLP125-40M | 125 | HLP115-50M | 115 | 69.85 | 78 | 82 | 108 | 148 | 6.3 | 83 |
| HLP130-50M | 130 | |||||||
| HLP140-50M | 140 | |||||||
| HLP160-50M | 160 | |||||||

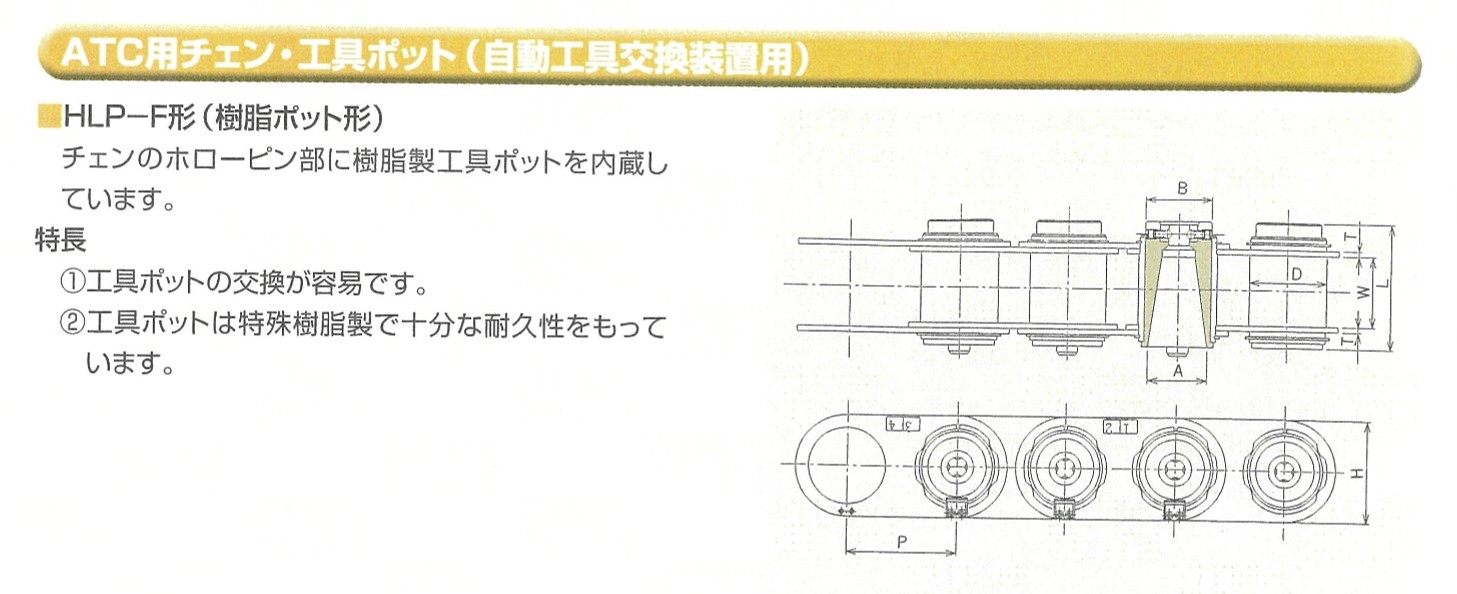

| チエン番号 | ピッチ Ｐ (mm) |
寸法(mm) | ||||||
| Ａ | Ｂ | Ｄ | Ｈ | Ｌ | Ｔ | Ｗ | ||
| HLP90-40F | 90 | 44.45 | 55 | 68 | 88 | 105 | 4.0 | 60 |
| HLP100-40F | 100 | |||||||
| HLP125-40F | 120 | HLP130-50M | 130 | 69.85 | 78 | 92 | 120 | 146 | 6.3 | 83 |
| HLP140-50F | 140 | 144 | ||||||
| HLP160-50F | 160 | |||||||

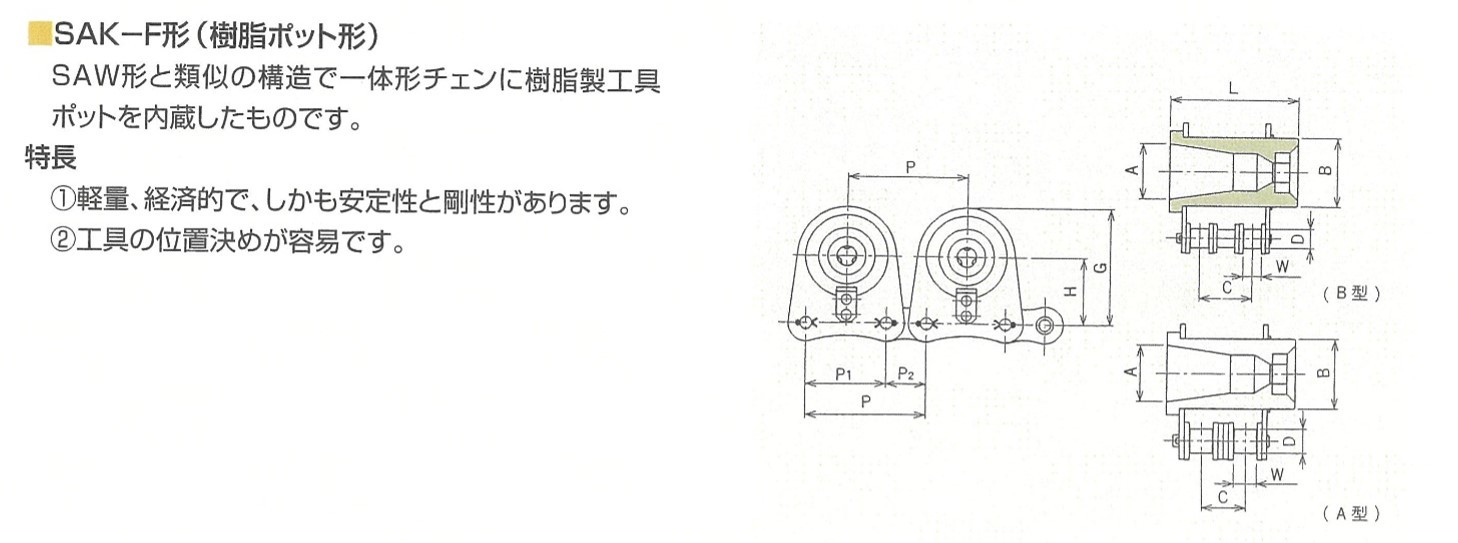

| チエン番号 | ピッチ (mm) |
寸法(mm) | |||||||||
| Ｐ | Ｐ1 | Ｐ2 | Ａ | Ｂ | Ｃ | Ｄ | Ｇ | Ｈ | Ｌ | Ｗ | |
| SAK100-40F | 95.25 | 63.5 | 31.75 | 44.45 | 55 | 53.18 | 19.05 | 92.0 | 53.0 | 102 | 19.05 |
| SAK120-50F | 114.30 | 76.2 | 38.10 | 69.85 | 78 | 77.10 | 22.23 | 115.3 | 68.3 | 148 | 25.40 |
| SAK140-50F | 133.35 | 88.9 | 44.45 | 69.85 | 78 | 73.60 | 25.4 | 136.0 | 80.0 | 148 | 25.40 |

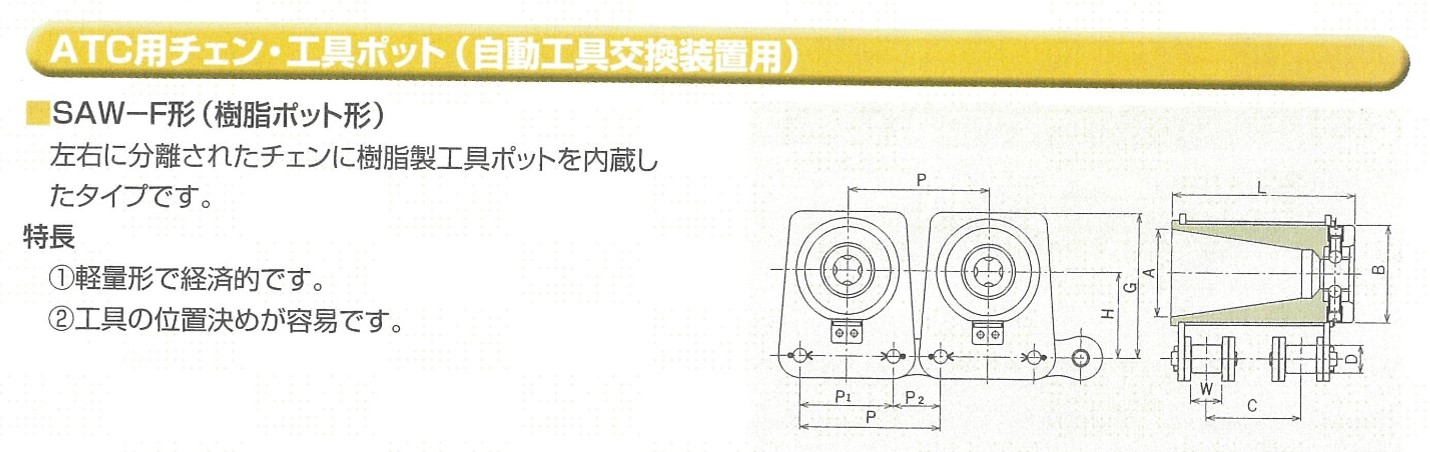

| チエン番号 | ピッチ (mm) |
寸法(mm) | |||||||||
| Ｐ | Ｐ1 | Ｐ2 | Ａ | Ｂ | Ｃ | Ｄ | Ｇ | Ｈ | Ｌ | Ｗ | |
| SAW120-50F | 114.30 | 76.2 | 38.10 | 69.85 | 78 | 52.6 | 22.23 | 115.3 | 68.3 | 155 | 25.40 |
| SAW120-50F | 114.30 | 76.2 | 38.10 | 69.85 | 78 | 77.10 | 22.23 | 136.0 | 80.0 | 148 | 25.40 |
| SAW140-50F | 133.35 | 88.9 | 44.45 | 69.85 | 78 | 73.60 | 25.4 | 136.0 | 80.0 | 148 | 25.40 |

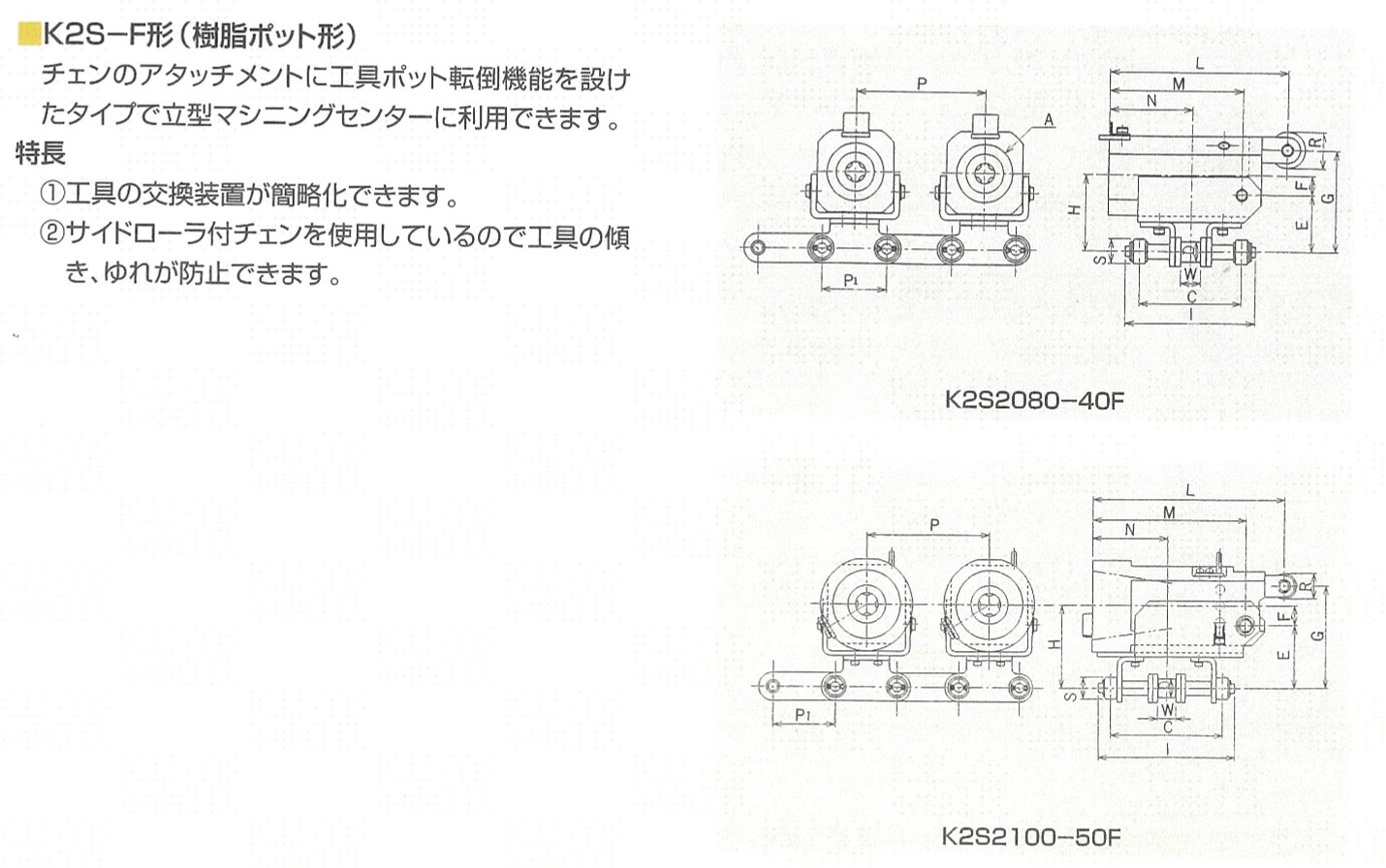

| チエン番号 | ピッチ (mm) |
寸法(mm) | ||||||||||||||
| Ｐ | Ｐ1 | Ａ | Ｃ | Ｄ | Ｅ | Ｆ | Ｇ | Ｈ | Ｉ | Ｌ | Ｍ | Ｎ | Ｒ | Ｓ | Ｗ | |
| K2S2080-40F | 101.6 | 50.8 | 44.45 | 70 | 15.88 | 43.5 | 15 | 78.5 | 58.5 | 92.6 | 140 | 105 | 60.00 | 28 | 19.05 | 15.88 |
| K2S2100-50F | 127.0 | 63.5 | 69.85 | 117 | 19.05 | 70.0 | 20 | 120.0 | 90.0 | 143.0 | 200 | 150 | 91.25 | 28 | 22.22 | 19.40 |
